Found 28 Products For "spray drying machine"
Asciugatrice a spruzzo a 50 Hz Sistema Cip Asciugatrice a spruzzo industriale a 80 - 90 gradi
Product Description: The Spray Drying Machine is an advanced piece of drying equipment designed to efficiently transform liquid materials into dry powders or granules through a rapid drying process. With a versatile loading capacity ranging from 5KGS/H to 10,000KGS/H, this drying machine caters to a wide array of industrial applications, from small-scale laboratory testing to large-scale production lines. Its robust design and high performance make it an indispensable tool in
Attrezzatura automatica per liofilizzazione a spruzzo con macchina per essiccazione a spruzzo da 15000 a 25000 giri/min
Essiccatore a spruzzo ad alta efficienza con evaporazione di 50-100 kg/h, parti di contatto in SS304/316L, controllo touch screen e CIP opzionale. Ideale per prodotti farmaceutici, alimentari e chimici.

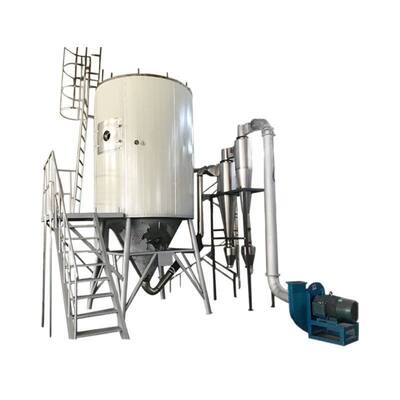

Asciugatrice a gas per riscaldamento a spruzzo 9000mm Controllo PLC Asciugatrice a spruzzo centrifuga
Essiccatore a spruzzo LGP: controllo PLC+HMI, temperatura automatica 140-350°C, evaporazione 50 kg/h. Multicombustibile (gas/elettrico/vapore/diesel). Per l'industria farmaceutica, alimentare, chimica. Asciugatura industriale durevole ed efficiente.

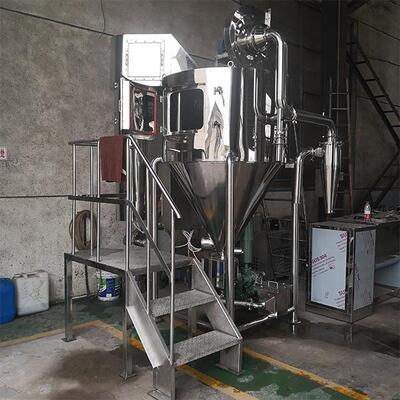

Asciugatrice a spruzzo chimica a camera da 200 - 2000 mm
Atomizzatore industriale con evaporazione max 50kg/h. Dispone di controllo touch screen PLC, temperatura di ingresso a controllo automatico di 170°C e riscaldamento versatile a vapore/elettrico/gas/diesel. Il funzionamento ad alta velocità da 10.800 a 18.000 giri/min garantisce un'essiccazione efficiente per le industrie chimiche, farmaceutiche e alimentari.
Asciugatrice a spruzzo chimica a 25000 giri al minuto 220v 380v
Lithium Iron Phosphate Dedicated High Speed Centrifugal Spray Dryer The LPG-5 is a compact spray dryer designed for laboratory research and small-scale testing. It features a maximum water evaporation capacity of 5 kg/h. This model utilizes a compressed air drive mode for atomization, achieving a high rotational speed of 25,000 r.p.m with a 50 mm spray disk. The unit is powered exclusively by electric heating with a maximum power of 9 kW. Its compact dimensions (1.8m L × 0

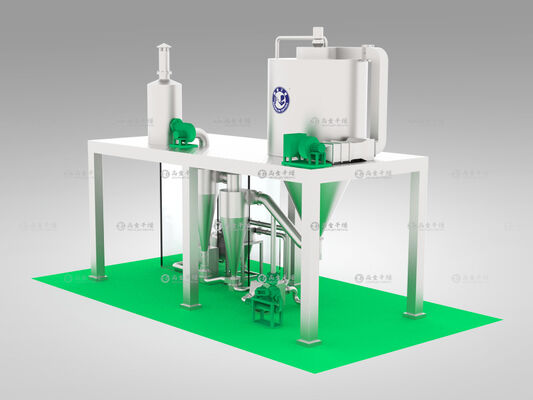

5 KGS/h - 10000 KGS/h Spray Dryer Machine Esplosioneproof Industrial
Atomizzatore industriale con temperatura di uscita 80-90°C, capacità 5-10.000 kg/h. Dispone di touch screen, design antideflagrante e struttura SS304/316L. Ideale per l'industria alimentare, farmaceutica e chimica.
220v 450v Spray Drying Machine Spray Dryer Industrial 9kw 36kw
Lithium Iron Phosphate Dedicated Spray Dryer Product Introduction Spray drying is a widely applied process in liquid forming and drying operations. This technology is particularly suitable for producing powder and granular solid products from raw materials including solutions, emulsions, suspensions, and pastes. The spray drying process ensures precise control over particle size distribution, residual moisture content, bulk density, and particle shape of finished products.

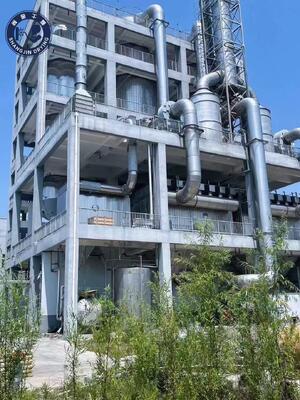

Macchina di asciugatura a spruzzo ad alta pressione con atomizzazione Torre di asciugatura a spruzzo 5 - 50 Um
Pressure Spray Drying Tower Core Principle and Application The pressure spray dryer converts liquid materials into fine droplets through high-pressure atomization, followed by instantaneous heat and mass transfer with high-temperature hot air flow, yielding powdered or granular finished products. Process Stages Material Pretreatment and Pressurized Conveying: Liquid materials are filtered and pressurized (2.0-20.0MPa) for transport to the atomization system High-Pressure
Asciugatrice a spruzzo di fosfato di ferro al litio 18000 giri al minuto Asciugatrice a spruzzo a velocità elevata
Lithium Iron Phosphate Dedicated High Speed Centrifugal Spray Dryer Product Description: The LPG-25 serves as an efficient pilot-scale solution with a maximum water evaporation capacity of 25 kg/h. It transitions to a mechanical drive mode for the atomizer, operating at 18,000 r.p.m with a 120 mm spray disk. This model supports a hybrid Steam + Electric heat source configuration, consuming a maximum of 36 kW of electric power. The unit dimensions are 3m L × 2.7m W × 4.26m H.
